QMJ-300S General introduction of the machine
A. This equipment is widely used in industry of toothpaste, cosmetic, drugs and food etc., it is applicable for various plastic tube and plastic-laminated-tube. It can fill-pack all kinds of cream, latex, lotion, oil and water etc. Before you use our equipment, read this user manual carefully, so that you can make a good use of our products.
This equipment use Panasonic PLC and sensor. It can automatically fill, seal, stamp batch numbers and exit tubes(with 8 tube position) . Inner-heating and outside –heating method is adopted in the heating section, which can blow hot-wind to the tube tail-ends inner wall. The parts touched with material adopt 304 stainless steel, which can proof acid, alkali and corrosion. All the channels can be unloaded fast and agilely. The material-valve can be rotated, it can be cleanout easily, so there’s no place for the dirty. Fixing organization can fix position precisely and firmly. The position-turning part can change speed by using different-frequency. Customers can adjust the working speed themselves.
Several devices such as heatproof system( to keep steady heating temp. of the material) , mixing parts, and etc can be chosen according to the customer’s demand.
Characteristic:
※ The parts touched with material adopt 304 stainless steel
※ The link parts are easy to take-down and washing
※ Uses high quality pneumatic elements
Basic parameters of the machine
1.Power supply: ~220V±10%
2.Consume ：350W×2 250W×2
3.Air source(Mpa):air pressure ＞ 0.4Mpa
4.Filling capacity(ml): 50、100、200、250（ml） as per customer demand
5.Speed: 20-40 pcs/min
6.Measure precision: ±1%
7.Dimension（mm）: 1100*800*1600(net)
After packed: 1200*900*1800mm
8.Weight of the machine (kg)：280㎏
►Very good quality Because we are professional

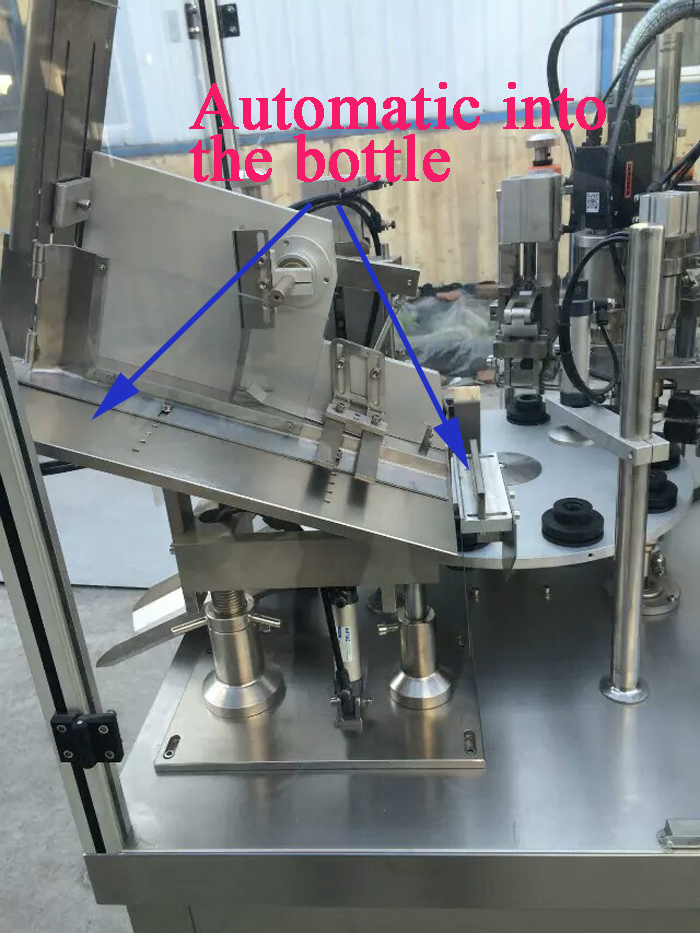

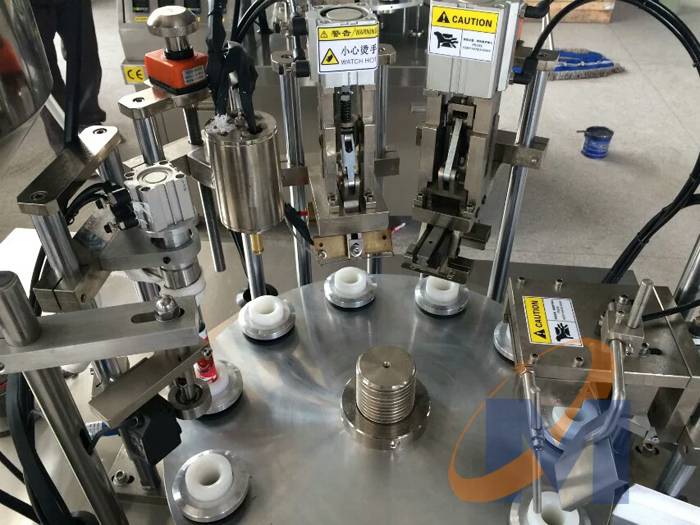

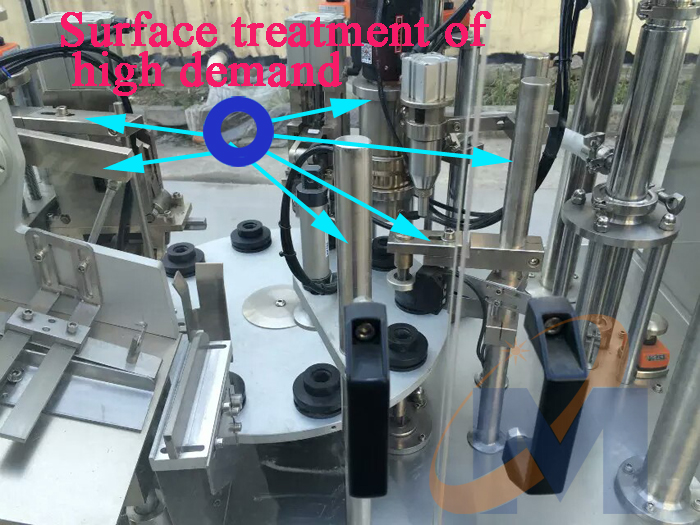

►The details of our
►The details of our
►The details of our
►The details of our

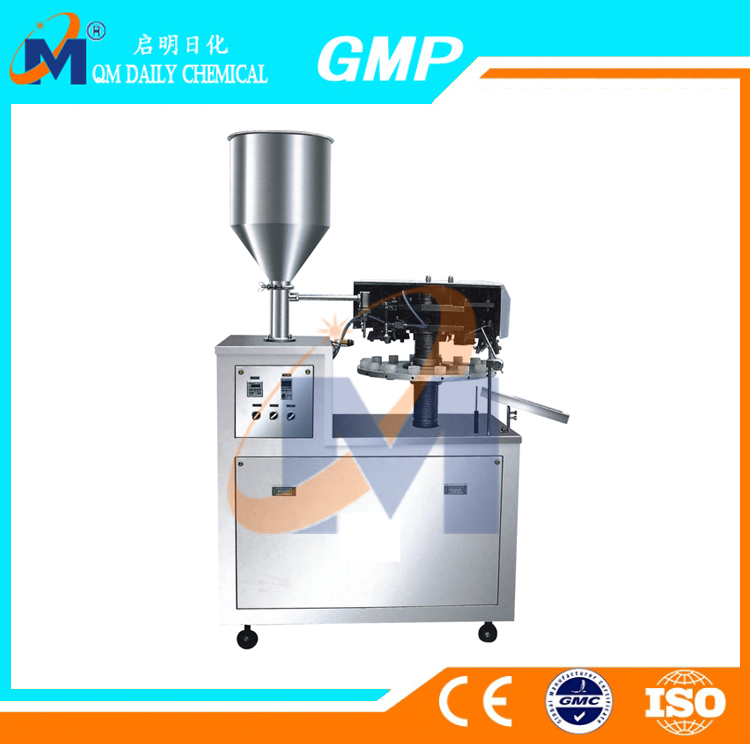

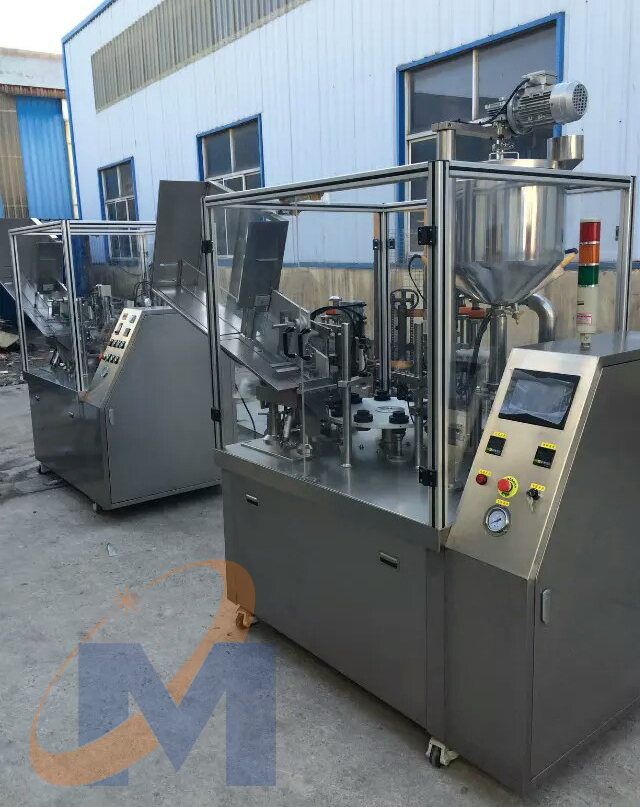

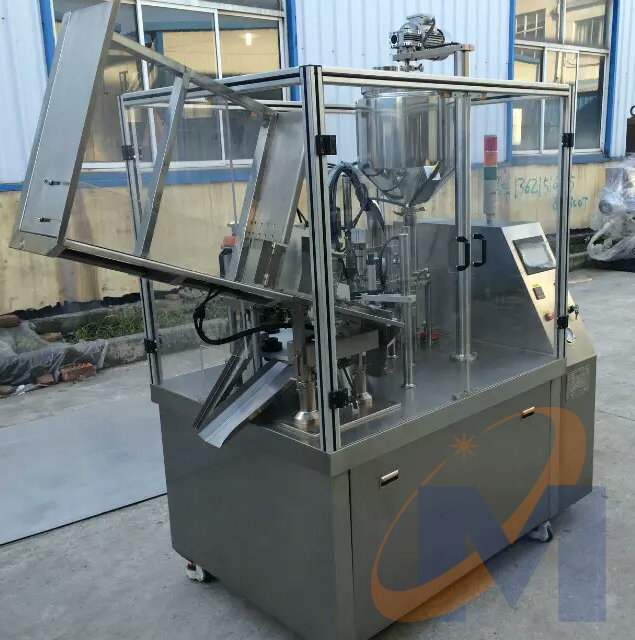

►The full figure

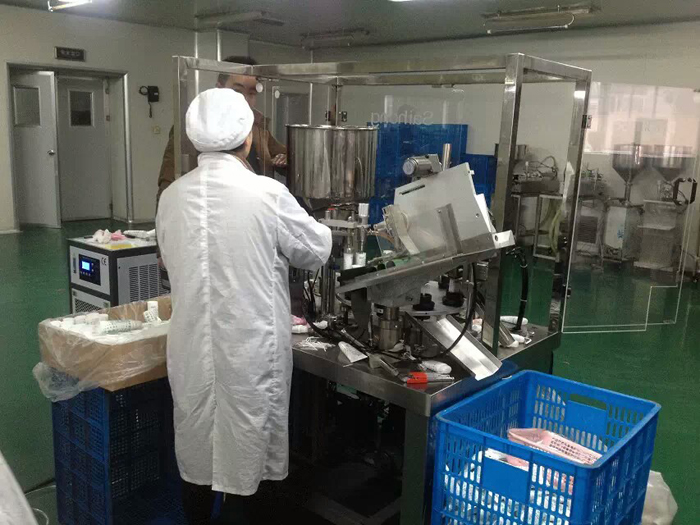

►The machine in the work
►Part of the product
►Cleansing milk products
Stable, reliable, high quality
